My Ergotron Cintiq Desk!
+5
The Elite Stand
+4

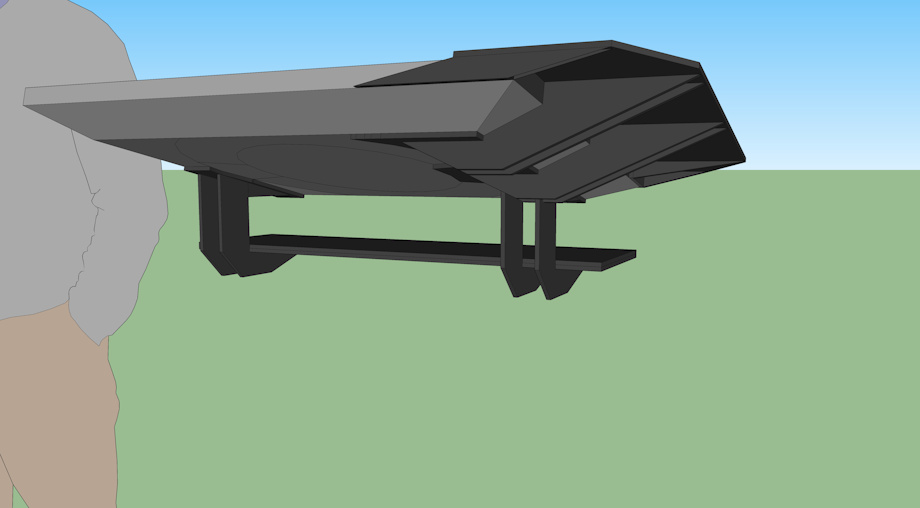

Messed around in Sketchup a while back and came up with this idea for a "desk" made out of foam board. The bottom tray is for holding a keyboard and trackpad, while the tray on the side is for a keypad. Since all of this is going to be held up by an ergotron arm with a weight limit of 30lbs I wanted it to be super light and still sturdy to use. The pads on the bottom of the cintiq will be held with strong double sided tape and the various pieces will be hot glued together.

If the tape ends up not sticking, i'll probably go with taking the screws out of the sides, replacing them with longer ones, and using that to support the braces on the sides and bottom.


Keywords
model 1,681, desk 815, idea 202, cintiq 27, sketchup 18, ergotron 3, foam board 1
Details
Type: Picture/Pinup
Published: 6 months, 3 weeks ago
Rating: General

MD5 Hash for Page 1... Show Find Identical Posts [?]
Stats
129 views
6 favorites
4 comments

BBCode Tags Show [?]

GABUJOE
6 months, 3 weeks ago
i am very interesting in this project.
Whippy
6 months, 3 weeks ago
I'll take pictures and post them when I get around to building it ^^
MichaelJBear
6 months, 3 weeks ago
Must say that your mind is always overflow with imagination
Whippy
6 months, 3 weeks ago
Awwwr, thanks ^///^ It's a blessing and a curse
